Rocket Motor Case Manufacturing – The AST Advantage

rocket motor case manufacturing

Rocket motor cases are crucial components in the design and performance of rocket launch operations. These cases house the propellant and associated components, providing the necessary structural integrity to withstand the extreme conditions of rocket launches, including; high pressures, temperatures, and dynamic forces.

Manufacturing rocket motor cases requires precision and expertise, as even minor imperfections can compromise the performance and safety of the rocket.

In this article, we are going to explore the different types of rocket motor cases, the manufacturing processes involved, and the unique challenges manufacturers face.

We’ll also dive into AST’s approach to motor case manufacturing and the advantages we offer to rocket launch teams in optimizing their supply chains and ensuring mission success.

Let’s begin!

Definition of Rocket Motor Cases

A rocket motor case is the primary structural component that encases the rocket’s propellant, combustion chamber, and related systems. It serves as the protective shell that maintains the integrity of these critical elements under the extreme pressures and temperatures experienced during rocket launches.

Motor cases are engineered from high-strength materials such as steel, aluminum, and specialized alloys like Inconel, depending on the specific demands of the mission.

They must be meticulously designed and manufactured to ensure they can safely contain the forces generated during propulsion.

Rocket Motor Case Diagram

The following diagram highlights the typical structure of a solid rocket motor case. In most cases, traditional manufacturing methods involve rolled parts with seams, which can create weak points and compromise structural integrity. However, AST’s process eliminates these seams, producing a seamless motor case for enhanced strength and reliability, a key differentiator.

Also illustrated below, the components involved, such as the nose cone, body sections, and pressure vessel components – all typically are produced as separate components. AST can integrate these, so that it becomes a one-piece part. We’ll explore further in the AST Advantage section.

rocket motor case diagramTypes of Rocket Motor Cases

Depending on the type of rocket, the motor cases are designed to accommodate specific types of fuel, whether solid, liquid, or a combination of both.

There are three common types of motor cases used in modern rocket propulsion systems—solid, liquid, and hybrid—each tailored to the unique demands of their respective fuel and oxidizer combinations.

Understanding the differences between these motor cases is key to appreciating the engineering that goes into ensuring rocket stability, performance, and safety during launch and flight.

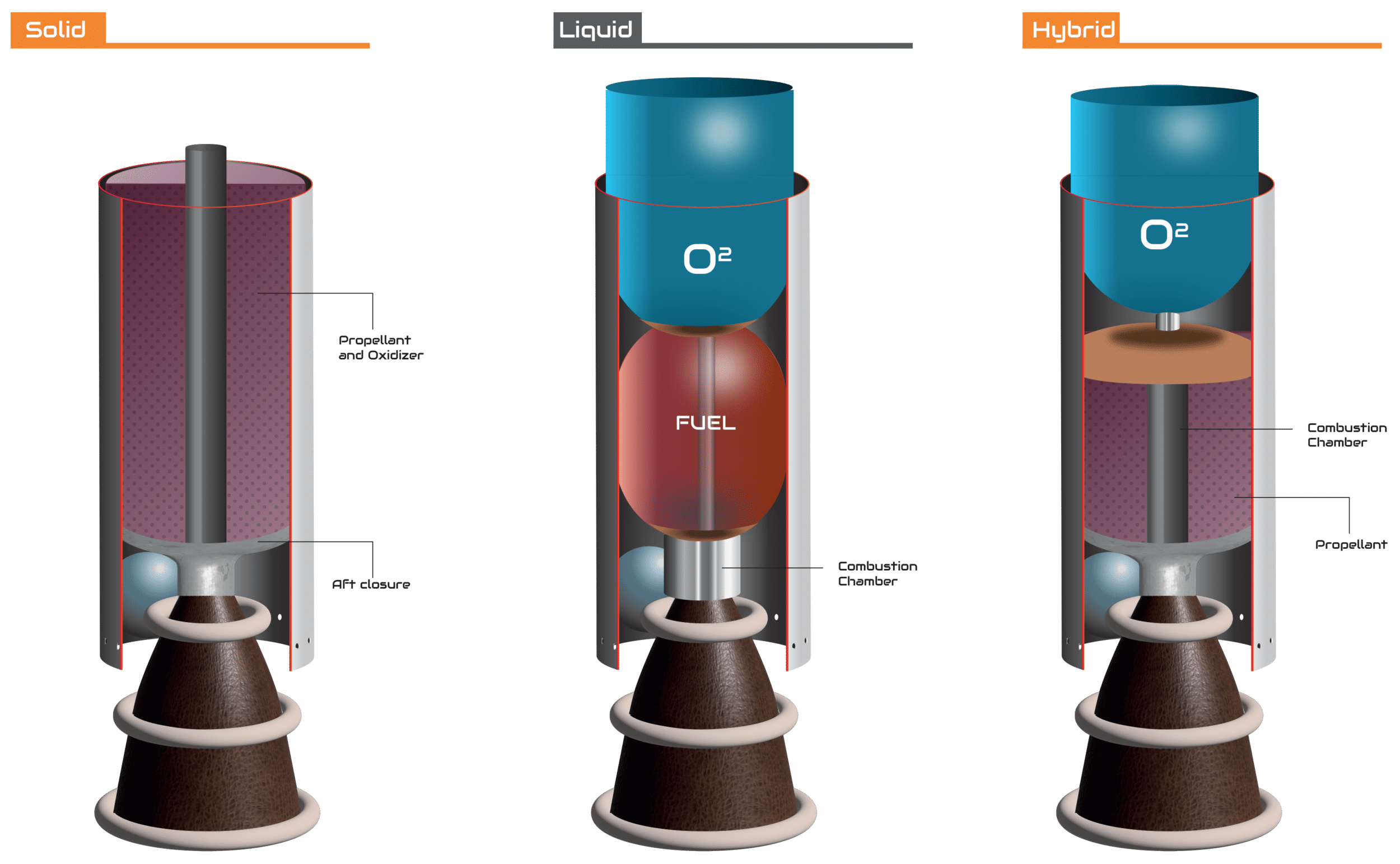

Types of Rocket Motor CasesSolid Rocket Motor Cases:

Solid rocket motor cases are designed to encase solid propellants.

These cases provide the structural support necessary during combustion, ensuring that the propellant burns evenly and the rocket maintains its trajectory.

Solid motor cases are typically made from materials like steel, aluminum, or Inconel, chosen for their ability to withstand the high pressures and temperatures generated during combustion.

Liquid Rocket Motor Cases:

Liquid rocket motor cases are designed to house liquid propellant tanks, combustion chambers, and related components.

Again, these cases are typically constructed from steel, aluminum, or Inconel, chosen for their ability to withstand the high pressures and temperatures.

The structural components in liquid rocket motor cases, such as the combustion chamber liners and nozzle components, are crucial for maintaining the integrity and efficiency of the propulsion system.

These components are generally separate from the main case but play an integral role in the overall functionality.

Hybrid Rocket Motor Cases:

Hybrid rocket motor cases are designed for propulsion systems that use a solid fuel and a liquid oxidizer.

These cases must support the solid rocket motor while accommodating the unique properties of a liquid oxidizer stored separately.

Materials Used for Motor Case Manufacturing

The materials chosen for rocket motor cases are critical to their performance. Commonly used materials include:

  • Inconel: A nickel-chromium superalloy known for its excellent high-temperature and corrosion resistance, ideal for high-stress environments.
  • Titanium: Valued for its high strength-to-weight ratio and corrosion resistance, making it suitable for demanding aerospace applications.
  • Aluminum: Lightweight and corrosion-resistant, aluminum is often used for components where weight savings are crucial without compromising structural integrity.

Materials Used for Motor Case Manufacturing

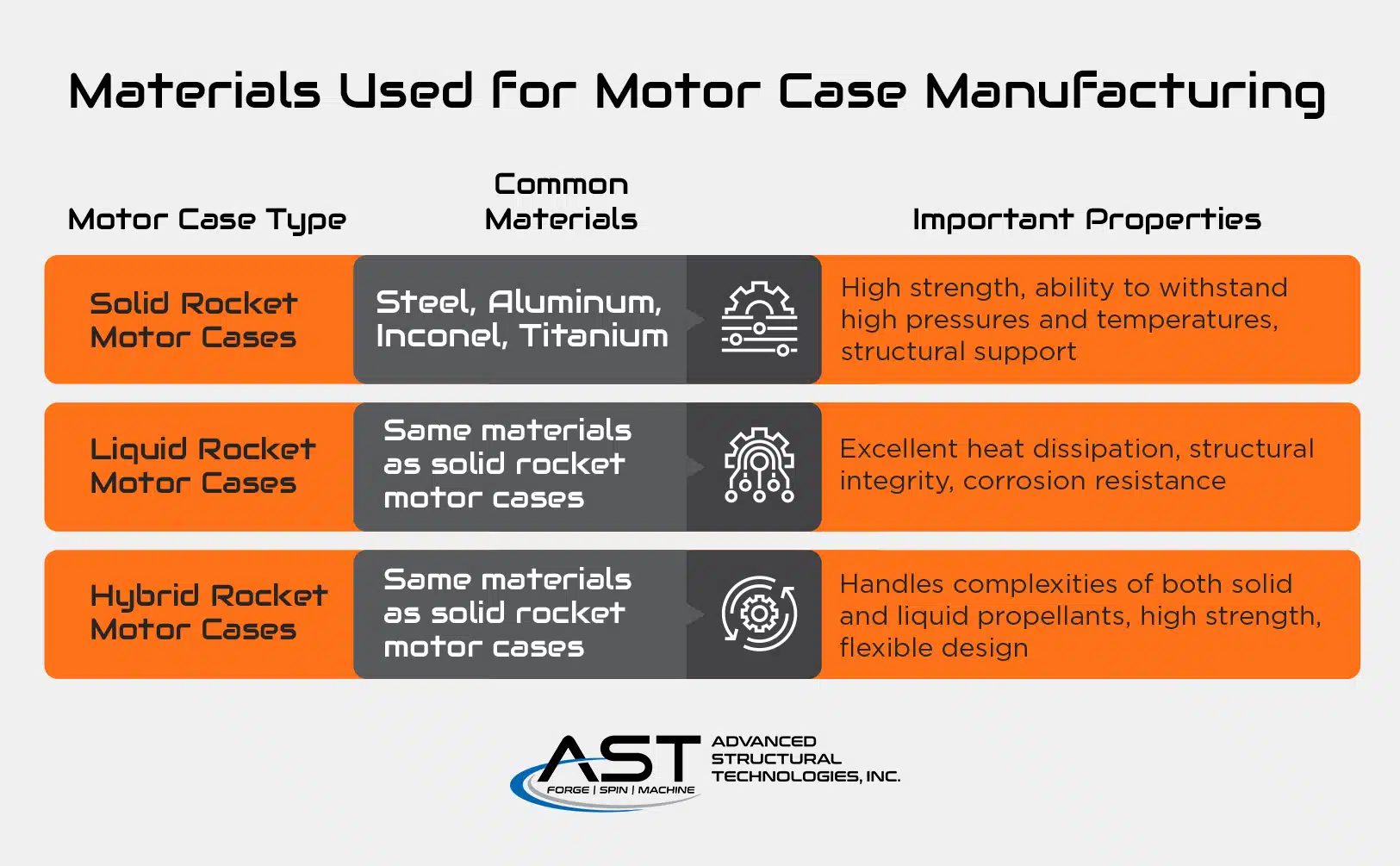

Motor Case Type Common Materials Important Properties
Solid Rocket Motor Cases Steel, Aluminum, Inconel, Titanium High strength, ability to withstand high pressures and temperatures, structural support
Liquid Rocket Motor Cases same materials as solid rocket motor cases Excellent heat dissipation, structural integrity, corrosion resistance
Hybrid Rocket Motor Cases Same materials as solid rocket motor cases Handles complexities of both solid and liquid propellants, high strength, flexible design

Manufacturing Processes for Rocket Motor Cases

Creating rocket motor cases involves advanced manufacturing techniques designed to ensure these critical components meet the rigorous standards required for rocket launch applications.

The key processes used in the production of motor cases include rotary forging and flow forming. These methods are chosen for their ability to produce high-strength, precision-engineered components that can withstand the extreme pressures and temperatures experienced during rocket launches.

Motor Case Production Technologies

Rotary Forging:
Rotary forging involves the application of rotational and axial compression forces to shape the metal into the desired form.

This process allows for the precise control of material flow, enhancing the mechanical properties of the component and ensuring uniform thickness and strength throughout the motor case.

Rotary forging is particularly effective for creating components with complex geometries and maintaining the integrity of high-strength materials.

Flow Forming:
Flow forming is a highly precise metal forming process where a tubular preform is placed on a mandrel and shaped by rollers applying pressure while the material is rotated.

This technique enables the creation of seamless, one-piece structures with uniform wall thickness and superior mechanical properties.

Flow forming reduces the need for additional machining and welding, resulting in motor cases that are both lightweight and strong, capable of withstanding the extreme conditions of rocket propulsion.

Common Challenges in Manufacturing Rocket Motor Cases

1. Seamless Manufacturing

Creating motor cases without welds is critical to avoid weak points.

Achieving a seamless construction ensures the necessary structural integrity, but requires advanced techniques like flow forming, which can be complex to execute properly.

2. Precision and Roundness

Achieving perfect cylindricity is essential for maintaining balance and consistent performance during flight.

Cylindricity measures how closely a component conforms to an ideal cylindrical shape High cylindricity and durable, making precision manufacturing techniques crucial for rocket motor cases

3. Structural Integrity:

Ensuring consistent grain flow and preventing material fatigue is vital for the strength and durability of motor cases.

This requires precise control during the manufacturing process to withstand extreme pressures and temperatures.

4. Material Sourcing

Obtaining high-quality materials that meet strict aerospace standards at reasonable rates is challenging but crucial for ensuring that motor cases can endure extreme conditions without failure.

5. Customization and Complexity

Custom motor case designs often involve varying wall thicknesses, attachment points, and internal features, which add complexity to the manufacturing process.

Precision is essential to meet these complex requirements while ensuring that all components fit and function seamlessly without the need for add-ons like flanges, which are not typical for rocket motor cases.

6. Meeting Short Lead Times

The space industry operates under intense timelines, making it challenging to balance high-quality manufacturing with timely delivery.

Efficient production processes and a well-coordinated supply chain are essential to meet these deadlines.

The AST Advantage

AST’s approach to rocket motor case manufacturing is centered around precision, flexibility, and innovation.

The capacity to rotary forge and flow form in-house is critical to AST’s ability to produce seamless, high-strength motor cases that meet the stringent demands of aerospace applications under tight lead times and exacting specifications. Custom motor case designs often involve varying wall thicknesses, attachment points, and internal features, which add complexity to the manufacturing process.

Precision is essential to meet these complex requirements while ensuring that all components fit and function seamlessly. Our client-centric approach ensures that we work closely with customers to customize designs, optimize the manufacturing processes and output results that are second to none.

motor case manufacturing service partner1. Flexible Motor Case Manufacturing Process

AST produces both complete motor cases and individual components, such as tubes, which can then be finished by the customer.

AST can produce tubes from 12-18” in diameter and up to 120” in length. This flexibility allows us to meet the diverse needs of its clients most efficiently.

2. Seamless, Weld-Free Motor Cases

In-house rotary forging and flow forming allows us to properly produce motor cases that are seamless and free of welds, enhancing their structural integrity and reliability.

3. Integration of Multiple Components

AST can integrate other components such as an aft enclosure, nozzle, or nose cone for example. This customization would normally involve 3 or more parts. AST could make this one, seamless part.

4. Rounder Parts

AST’s precision manufacturing ensures cylindrical motor cases, minimizing interference and improving overall performance during flight.

5. Shorter Lead Times

An in-house manufacturing processes and well-coordinated supply chain allow for shorter lead times, helping clients meet tight project deadlines.

6. Technological Edge

We leverage cutting-edge flow forming and rotary forging techniques  to produce high-quality, customized motor cases tailored to specific client requirements.

7. Custom Solutions and Flexibility

AST excels in providing tailored solutions that optimize material efficiency, component quality, and turnaround time, ensuring that every motor case meets the exact needs of the client.

8. Quality Assurance and Innovation

Our commitment to rigorous quality control and continuous innovation ensures that every motor case is manufactured to the highest standards, with a focus on grain structure, strength, and elongation.

Conclusion

Rocket motor case manufacturing requires precision, innovation, and a deep, nuanced understanding of the challenges associated with aerospace applications.

Throughout this article, we’ve explored the importance of seamless construction, material selection, and advanced manufacturing techniques in producing reliable and high-performance motor cases.

AST’s commitment to quality, custom solutions, and technological advancements positions us as a leader in this field, providing rocket launch teams with the components they need to achieve mission success.

For more information or to discuss your specific needs, please contact us today!
